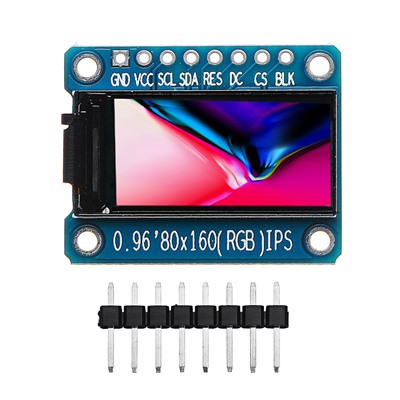

0.96 Inch 7Pin HD Color IPS Screen

Giá: 75.000₫ Còn hàng

 0.96 Inch 7Pin HD Color IPS Screen TFT LCD Display SPI ST7735 Module For Arduino

 0.96 Inch 7Pin HD Color IPS Screen TFT LCD Display SPI ST7735 Module For Arduino
 Size: 0.96 Inch
Material: New IPS color screen, the color is more vivid than ordinary TFT LCD screen
Resolution: 80*160 display, direction can adjust horizontal screen vertical screen
Control chip: ST7735
Display area: 10.8 x 21.696mm
Physical size: 24 x 30mm
Interface type: SPI interface
Number of pins: 7
Display color: 65K full color
Working temperature: -20~70°C
Working voltage: 3.3V

Interface definition:
1> GND (Power ground)
2> VCC (Power +3.3)
3> SCL (SPI clock line)
4> SDA (SPI data line)
5> RES (LCD reset, LCD needs to be reset once after power-on)
6> DC (SPI data/command selection pin)
7> BLK (LCD backlight control, default can be left floating, low level to turn off the backlight)
