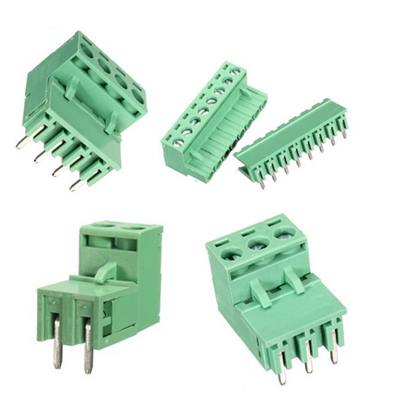

12Pin PCB Terminal Block-R-A

Giá: 12.000₫ Còn hàng

12 Pin  5.08mm Pitch Plug-in Screw PCB Terminal Block Connector Right Angle

12 Pin  5.08mm Pitch Plug-in Screw PCB Terminal Block Connector Right Angle
Pitch: 5.08mm
Pin header: Brass Tin plated
Housing: PA66.UL94V-0
Poles: 12 Pin
Rated voltage: 300V 10A
Rated current: IEC:15A; UL:10A
Withstanding voltage: AC2500V/Min
Temperature range: -40 degrees Celsius~105 degrees Celsius

Ứng dụng sản phẩm
