Mạch Điều Chỉnh Độ Trễ Đóng Và Ngắt Relay 12V

Video Hướng dẫn

Click vào Đây

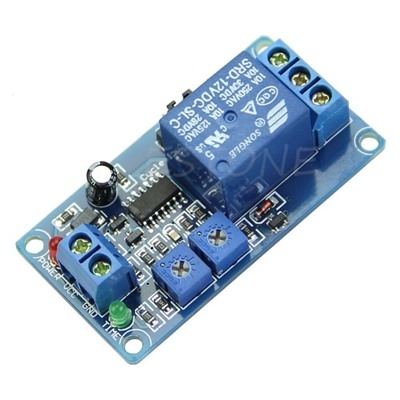

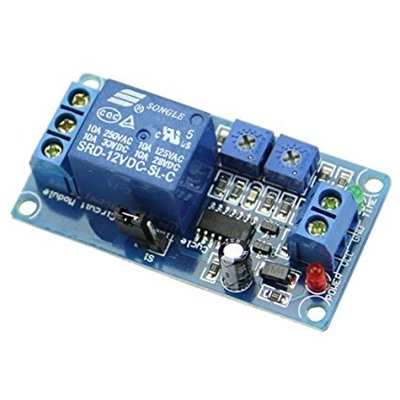

Cycle Delay Module Cycle Relay Switch Relay Module Timing Chip Control
 Products Introduce:
1. Using advanced quality timing chip control and accurate timing performance is far better than the 555 chip
2. Has anti-film reverse protection diode, better protection module
3. Relay is turned on and off times individually adjustable potentiometer function
4. Can be accessed by a large current load (250V ac 10 A or 30V dc 10A)
5. Output relays have normally open, normally closed selection
Features:
When the module is powered up, the relay immediately pull the pull-in time can be adjust by potentiometer 1-200 seconds (or so), the relay automatically enter the end of time is timing relay disconnected state off time can also be potentiometer adjustment 1-200 seconds (or so), the end of the off-time timing, and then into the pull-in state, followed by circulation, only power will stop working
Relay load capacity:
Input Voltage: DC12V
Quiescent Current: 12mA
Maximum Power Consumption: 48mA
250V 10A AC the ideal (2500W power exchange)
30V 10A DC (300W ideal power DC)
The practical application of the best power halved to use, beneficial products to prolong life
Size: 5.5*3cm/2.16*1.18"
