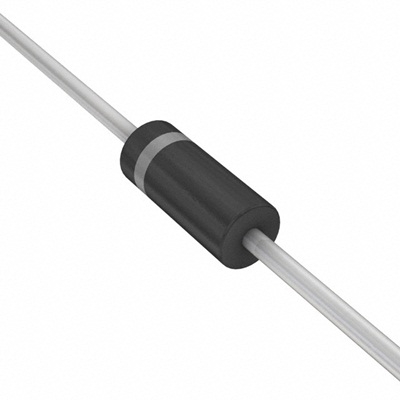

1N4934GP-E3/54

Giá: 1.500₫ Còn hàng

DIODE FAST SW 100V 1A DO204AL

DIODE FAST SW 100V 1A DO204AL,
Diode Type    Standard
Voltage - DC Reverse (Vr) (Max)    100V
Current - Average Rectified (Io)    1A
Voltage - Forward (Vf) (Max) @ If    1.2V @ 1A
Speed    Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)    200ns
Current - Reverse Leakage @ Vr    5µA @ 100V
Capacitance @ Vr, F    15pF @ 4V, 1MHz
Mounting Type    Through Hole
Package / DO-41

​   data sheet

Ứng dụng sản phẩm
