20MHZ - HC49/US

Giá: 1.800₫ Còn hàng

20MHz ±30ppm Crystal 18pF 50 Ohm -20°C ~ 70°C Surface Mount HC49/US

Type     MHz Crystal
Frequency     20MHz
Frequency Stability     ±50ppm
Frequency Tolerance     ±30ppm
Load Capacitance     20pF
ESR (Equivalent Series Resistance)     60 Ohm
Operating Mode     Fundamental
Operating Temperature     -20°C ~ 70°C
Ratings     -
Mounting Type     Surface Mount
Package / Case     HC49/US

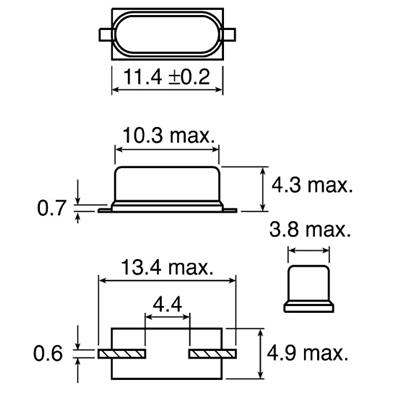

Size / Dimension     0.437" L x 0.190" W (11.10mm x 4.83mm)
Height     0.169" (4.30mm)

Ứng dụng sản phẩm
