219-3MST

Giá: 6.500₫ Còn hàng

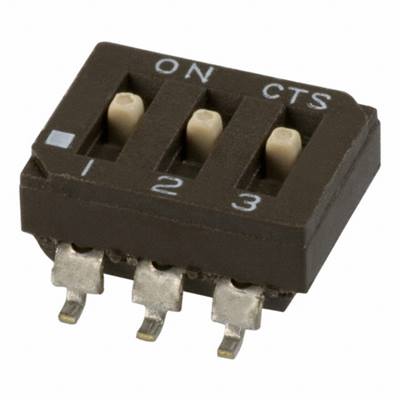

Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 100mA 20VDC

Circuit     SPST
Number of Positions     3
Current Rating     100mA
Voltage Rating     20VDC
Actuator Type     Slide (Standard)
Actuator Level     Raised
Contact Material     Beryllium Copper
Contact Finish     Gold
Height Above Board     0.170" (4.33mm)
Mounting Type     Surface Mount
Termination Style     Gull Wing
Pitch     0.100" (2.54mm), Full
Washable     Yes
Features     Epoxy Sealed Terminals, Tape Seal
Body Material     -
Length     0.358" (9.09mm)

   data sheet
