74HC14D

Giá: 1.800₫ Còn hàng

IC HEX INVERTER SCHM TRIG 14SOIC

IC HEX INVERTER SCHM TRIG 14SOIC ,

Logic - Gates and Inverters
Packaging      Tube
Logic Type    Inverter
Number of Circuits    6
Number of Inputs    6
Features    Schmitt Trigger
Voltage - Supply    2 V ~ 6 V
Current - Quiescent (Max)    2µA
Current - Output High, Low    5.2mA, 5.2mA
Logic Level - Low    0.3 V ~ 1.2 V
Logic Level - High    1.5 V ~ 4.2 V
Max Propagation Delay @ V, Max CL    21ns @ 6V, 50pF
Mounting Type    Surface Mount

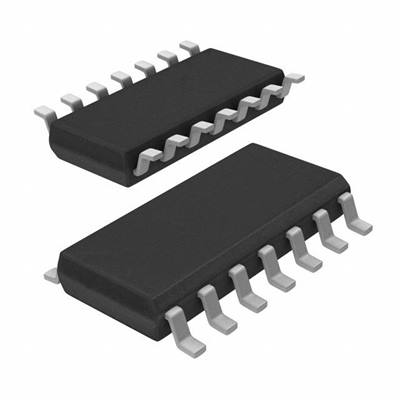

Package / 14-SOIC (0.154", 3.90mm Width)

​  data sheet

Ứng dụng sản phẩm
