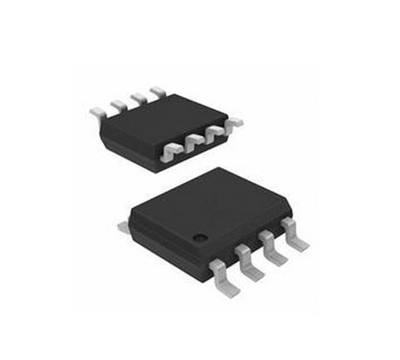

ACS712ELCTR-20A

Giá: 33.000₫ Còn hàng

Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC

SENSOR CURRENT 20A 5V BI 8-SOIC
Current Transducers
Packaging     Tape & Reel
For Measuring    AC/DC
Sensor Type    Hall Effect, Open Loop
Current - Sensing    20A
Number of Channels    1
Output    Ratiometric, Voltage
Sensitivity    100mV/A
Frequency    DC ~ 80kHz
Linearity    ±1.5%
Accuracy    ±1.5%
Voltage - Supply    4.5 V ~ 5.5 V
Response Time    5µs
Current - Supply (Max)    13mA
Polarization    Bidirectional
Mounting Type    Surface Mount
Package /     8-SOIC (0.154", 3.90mm Width)

​  data sheet
