ACS714ELCTR-20A-T

Giá: 75.000₫ Còn hàng

Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC (0.154", 3.90mm Width)


Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC (0.154", 3.90mm Width)
Sensor Type    Hall Effect, Open Loop
Current - Sensing    20A
Number of Channels    1
Output    Ratiometric, Voltage
Sensitivity    100mV/A
Frequency    DC ~ 80kHz
Linearity    ±1.5%
Accuracy    ±1.5%
Voltage - Supply    5V
Response Time    5µs
Current - Supply (Max)    13mA
Operating Temperature    -40°C ~ 85°C
Polarization    Bidirectional
Mounting Type    Surface Mount

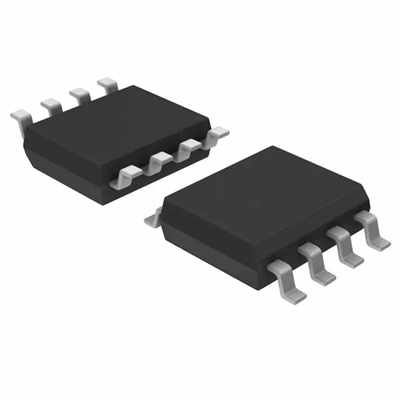

Package / Case    8-SOIC (0.154", 3.90mm Width)
