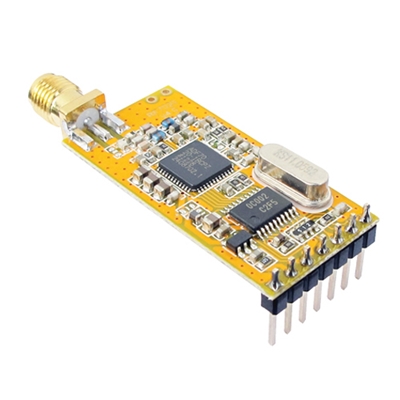

APC220A

Giá: 350.000₫ Còn hàng

Outdoor covers up to 1000meters(9600bps)

Features:

1.Outdoor covers up to 1000meters(2400bps)

2.Frequency range 418-455MHz or 470-510MHz

3.0.2MHz channel spacing

4.ANALOG DEVICE ADF7020 RFIC

5.Output power:20mW(adjustable)

6.Optional interface of UART/TTL,RS232,RS485

7.Outstanding receiver sensitivity -114dBm@9600bps

8.High efficiency forward error correction with interleaving encoding

9.GFSK modulation

10.Main parameters can be changed by APPCON RF module software

11.256Bytes data buffer

12.Power supply with voltage +3.3 ~ 5.5V

13.Power consumption:RX current:28mA,Tx current:35mA

14.Operating temperature:-30℃ to 85℃

15.Size:37.5*18.3*7.0(mm)

  data sheet

Ứng dụng sản phẩm
