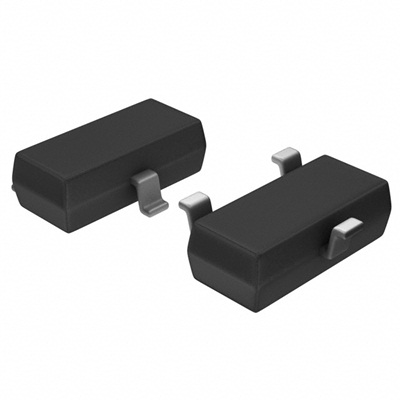

BSS138LT1G
Giá: 800₫ Còn hàng
MOSFET N-CH 50V 200MA SOT-23
MOSFET N-CH 50V 200MA SOT-23,
FETs - Single
Packaging Tape & Reel
FET Type MOSFET N-Channel, Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 50V
Current - Continuous Drain (Id) @ 25°C 200mA (Ta)
Rds On (Max) @ Id, Vgs 3.5 Ohm @ 200mA, 5V
Vgs(th) (Max) @ Id 1.5V @ 1mA
Gate Charge (Qg) @ Vgs -
Input Capacitance (Ciss) @ Vds 50pF @ 25V
Power - Max 225mW
Mounting Type Surface Mount
Package / SOT-23-3
