CAP ALUM 220UF 16V

Giá: 1.800₫ Còn hàng

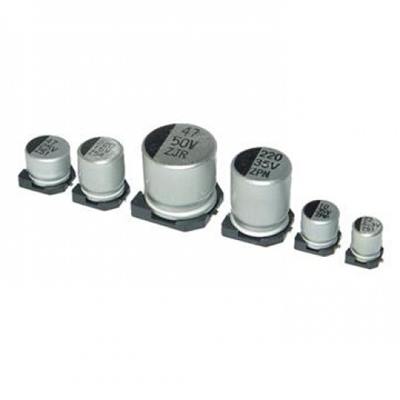

CAP ALUM 220UF 16V 20% SMD

CAP ALUM 220UF 16V 20% SMD
Capacitance     220µF
Tolerance     ±20%
Voltage Rating     16V
ESR (Equivalent Series Resistance)     -
Lifetime @ Temp.     2000 Hrs @ 85°C
Operating Temperature     -40°C ~ 85°C
Polarization     Polar
Applications     General Purpose
Ripple Current     162mA @ 120Hz

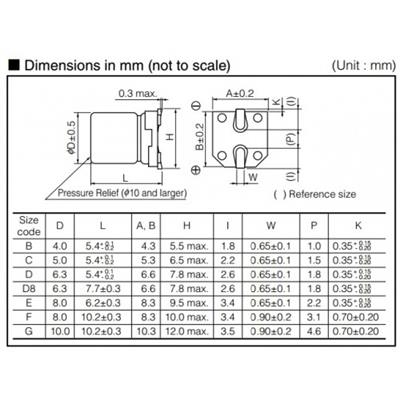

Size / Dimension     0.248" Dia (6.30mm)
Height - Seated (Max)     0.303" (7.70mm)
Surface Mount Land Size     0.260" L x 0.260" W (6.60mm x 6.60mm)

  data sheet
