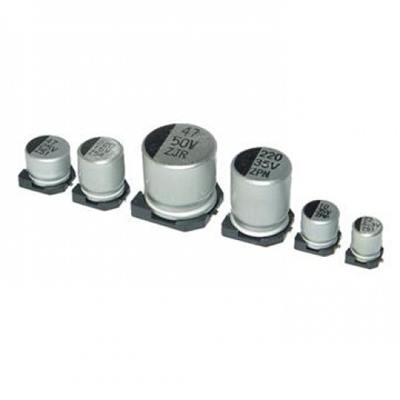

CAP ALUM 220UF 35V
Giá: 1.500₫ Còn hàng
CAP ALUM 220UF 35V 20% SMD
CAP ALUM 220UF 35V 20% SMD
Capacitance 220µF
Tolerance ±20%
Voltage Rating 35V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current 200mA @ 120Hz

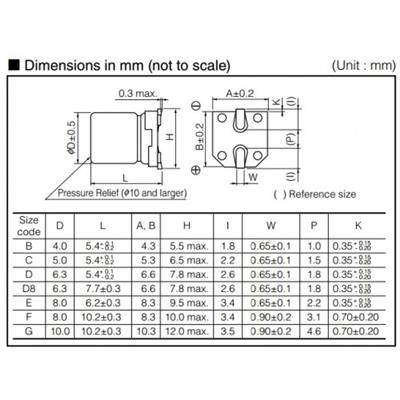

Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
