CAP ALUM 220UF 50V

Giá: 2.200₫ Còn hàng

CAP ALUM 220UF 50V 20% SMD

CAP ALUM 220UF 50V 20% SMD
Capacitance     220µF
Tolerance     ±20%
Voltage Rating     50V
ESR (Equivalent Series Resistance)     -
Lifetime @ Temp.     2000 Hrs @ 85°C
Operating Temperature     -40°C ~ 85°C
Polarization     Polar
Applications     General Purpose
Ripple Current     300mA @ 120Hz

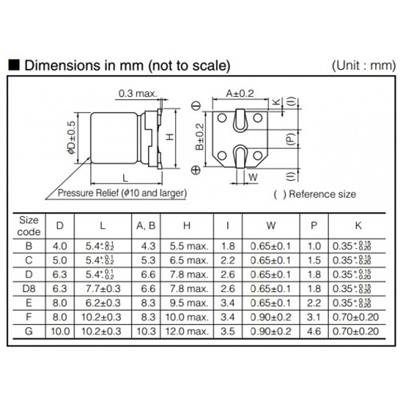

Size / Dimension     0.394" Dia (10.00mm)
Height - Seated (Max)     0.402" (10.20mm)
Surface Mount Land Size     0.406" L x 0.406" W (10.30mm x 10.30mm)

  data sheet
