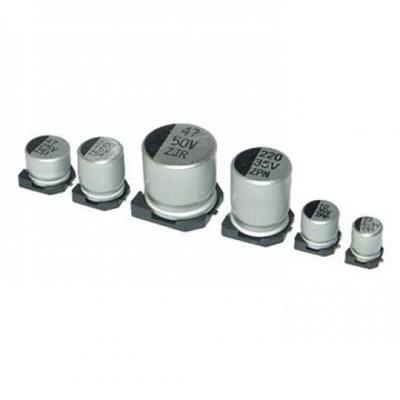

CAP ALUM 330UF 50V

Giá: 4.000₫ Còn hàng

CAP ALUM 330UF 50V 20% SMD

CAP ALUM 330UF 50V 20% SMD
Capacitance     330µF
Tolerance     ±20%
Voltage Rating     50V
ESR (Equivalent Series Resistance)     120 mOhm @ 100kHz
Lifetime @ Temp.     2000 Hrs @ 105°C
Operating Temperature     -55°C ~ 105°C
Polarization     Polar
Applications     General Purpose
Ripple Current     585mA @ 120Hz

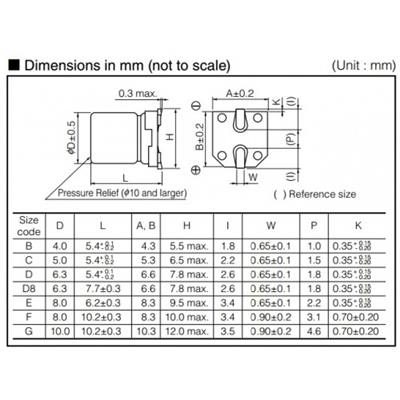

Size / Dimension     0.394" Dia (10.00mm)
Height - Seated (Max)     0.413" (10.50mm)
Surface Mount Land Size     0.406" L x 0.406" W (10.30mm x 10.30mm)

  data sheet
