CAP ALUM 680UF 10V
Giá: 3.800₫ Còn hàng

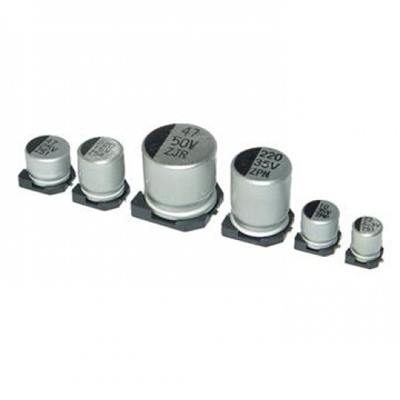

680µF 10V Aluminum Capacitors SMD
680µF 10V Aluminum Capacitors SMD
Capacitance 680µF
Tolerance ±20%
Voltage Rating 10V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current 450mA @ 120Hz
Impedance 160 mOhm

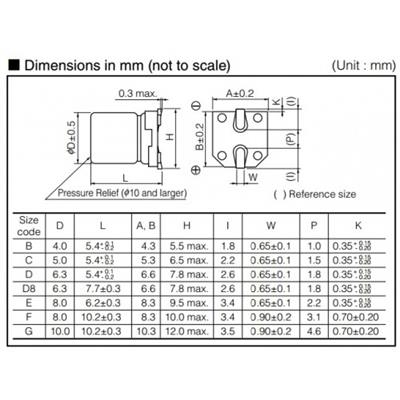

Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
