CAP ALUM 680UF 6.3V

Giá: 3.500₫ Còn hàng

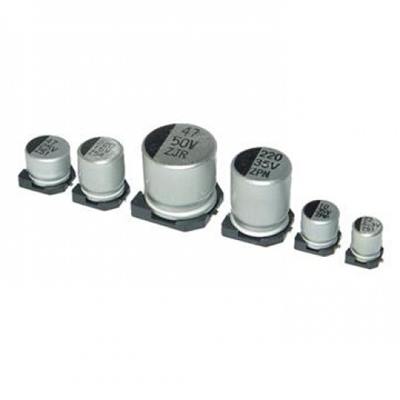

680µF 6.3V Aluminum Capacitors SMD

680µF 10V Aluminum Capacitors SMD
Capacitance     680µF
Tolerance     ±20%
Voltage Rating     6.3V
ESR (Equivalent Series Resistance)     -
Lifetime @ Temp.     2000 Hrs @ 105°C
Operating Temperature     -55°C ~ 105°C
Polarization     Polar
Applications     General Purpose
Ripple Current     450mA @ 120Hz
Impedance     160 mOhm
Size / Dimension     0.315" Dia (8.00mm)
Height - Seated (Max)     0.413" (10.50mm)
Surface Mount Land Size     0.327" L x 0.327" W (8.30mm x 8.30mm)

  data sheet

Ứng dụng sản phẩm
