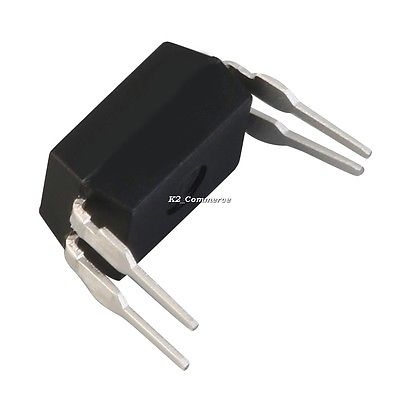

EL814A

Giá: 2.500₫ Còn hàng

OPTOISOLATOR 5KV TRANS 4 PINDIP

Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Number of Channels     1
Voltage - Isolation     5000Vrms
Current Transfer Ratio (Min)     50% @ 1mA
Current Transfer Ratio (Max)     150% @ 1mA
Turn On / Turn Off Time (Typ)     -
Rise / Fall Time (Typ)     7µs, 11µs
Input Type     AC, DC
Output Type     Transistor
Voltage - Output (Max)     80V
Current - Output / Channel     -
Voltage - Forward (Vf) (Typ)     1.2V
Current - DC Forward (If) (Max)     60mA
Vce Saturation (Max)     200mV
Operating Temperature     -55°C ~ 110°C
Mounting Type     Through Hole
Package / Case     4-DIP (0.300", 7.62mm)

  data sheet
