ERC12864FSF-2

Giá: 160.000₫ Còn hàng

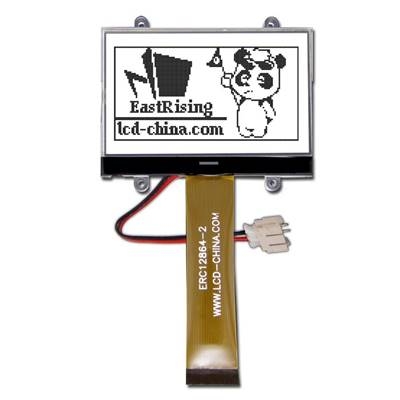

2.6"SPI Serial Graphic LCD 128x64,NT7538 Controller,Black on White

2.6"SPI Serial Graphic LCD 128x64,NT7538 Controller,Black on White
Display Format     128x64 Dots
Interface     6800 8-bit Parallel , 8080 8-bit Parallel , 4-Wire Serial SPI
IC or Equivalent     NT7532 , NT7538 , SPLC501 , ST7565
Appearance     Black on White
Diagonal Size     2.6“
Connection     FPC-Connector
Outline Dimension     69.54(W)x58.0(H)x5.0(T)mm
Visual Area     64.50x37.00mm
Active Area     59.49(W)x29.73(H)mm
Dot (Pixel) Size     0.435x0.435mm
Dot (Pixel) Pitch     0.465x0.465mm
IC Package     COG
Display Type     FSTN-LCD Grey
Sunlight Readable     Yes
Backlight Color     White Color
Backlight Current (Typ)     75mA
Power Supply(Typ)     3.3V
Supply Current for LCM(Max)     450uA
