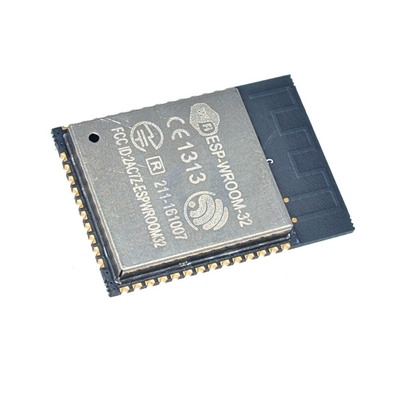

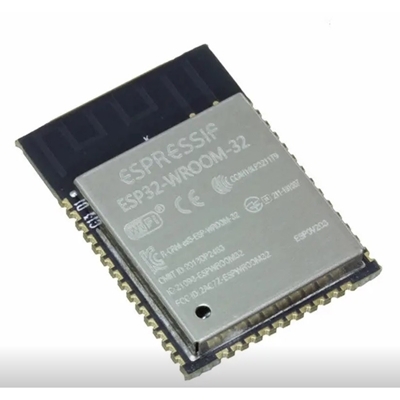

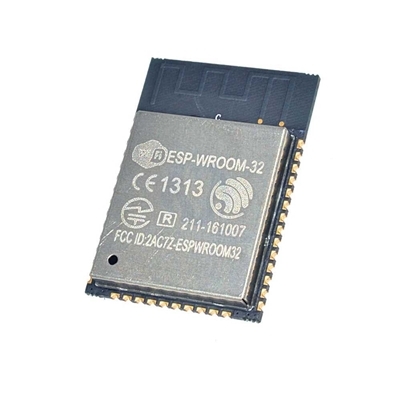

ESP-32S ESP-WROOM-32

Giá: 88.000₫ Còn hàng

ESP-32S ESP-WROOM-32 Bluetooth WIFI Module Dual Core CPU With Low Power Consumption MCU

ESP-32S ESP-WROOM-32 Bluetooth WIFI Module Dual Core CPU With Low Power Consumption MCU
ESP-WROOM-32 is Powered by Espressif's most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput

Ứng dụng sản phẩm
