Ethernet W5500

Giá: 93.000₫ Còn hàng

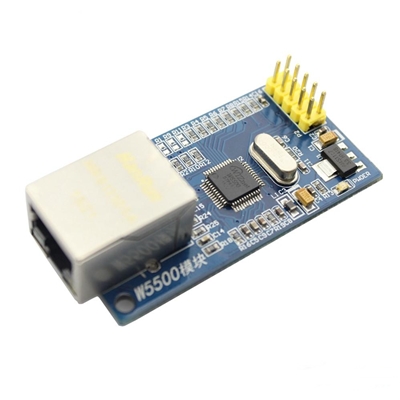

W5500 Ethernet Network Module

Features

Supports following Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
Internal 32Kbytes Memory for Tx/Rx Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Support Auto Negotiation (Full and half duplex, 10 and 100-based)
Not support IP Fragmentation
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)

Specifications

Module size: 55mm x 28mm
Power supply: 3.3v /5v
SPI clock frequency(MAX): 80M
Work current(typ): 128mA
