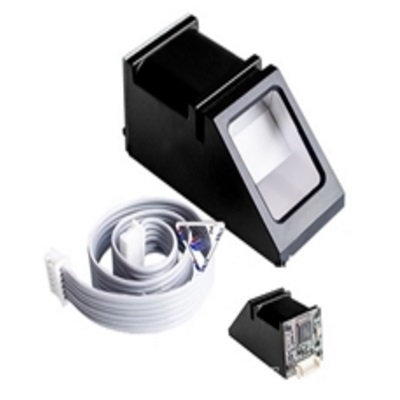

Fingerprint module

Giá: 520.000₫ Còn hàng

 Fingerprint Scanner Module



 upply voltage: DC 5V

Supply Current: Operating current: <120mA peak current: <130mA
Fingerprint image input time: <0.5 seconds
Window Size: 18.5mm X 14.6mm
Matching: match mode (1: 1)
Search mode (1: N)
Storage capacity: 200
Security level: five (from low to high: 1,2,3,4,5) Default 3
False Accept Rate (FAR): <0.001% (security level 3)
False Rejection Rate (FRR): <1.0% (security level 3)
Search time: <1.0 seconds (1: 500 is average)
Resolution: 500dpi
PC Interface: UART (TTL logic level)
Baud rate (UART) :( 9600╳N) bps where N = 1 ~ 6 (default value N = 6, that is 57600bps)
working environment:
Temperature: -25 ℃ - + 55 ℃
Relative Humidity: 40% RH-85% RH (non-condensing)
Storage environment:
Temperature: -40 ℃ - + 85 ℃
Relative humidity: <90% H (no condensation)
Optical module (C3) Dimensions (L╳W╳H): Long 47.65mmX high 21.20mm wide 20.50mmX
Semiconductor module Dimensions (L╳W╳H):
Capacitive module Dimensions: main board: long 35mmX wide 28mmX height 7mm
Sensor: Length Width 20.4mm 33.4mmX
Scratch-off module Dimensions: main board: long 35mmX wide 28mmX height 7mm
Sensing plate: long 24mmX high 5mm wide 20mmX
