HC-SR505

Giá: 29.000₫ Còn hàng

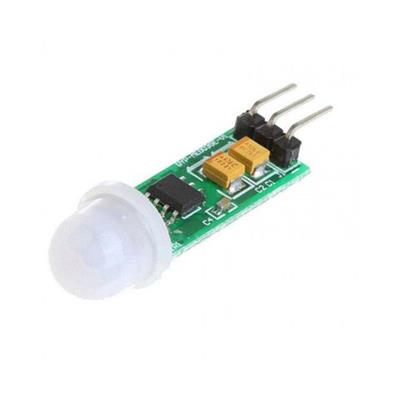

 HC-SR505 Mini PIR Motion Sensor is based on infrared technology

 HC-SR505 Mini PIR Motion Sensor is based on infrared technology

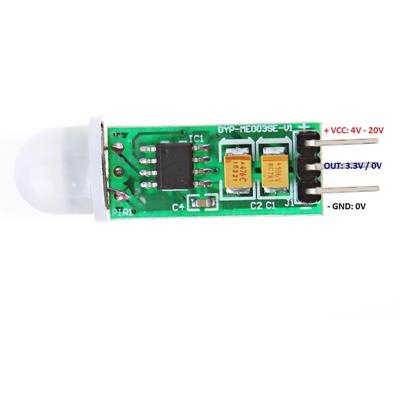

    Operating voltage range: DC4.5-20V
    Quiescent Current: <60uA
    Level output: Gao 3.3V / Low 0V
    Trigger: reusable trigger (default)
    Delay Time: The default 8S + -30%
    Board Dimensions: 10 * 23mm
    Induction angle: <100 degrees cone angle
    Sensing distance: 3 meters
    Working temperature: -20 to +80 degrees
    Sensor Lens Dimensions: Diameter: 10mm
