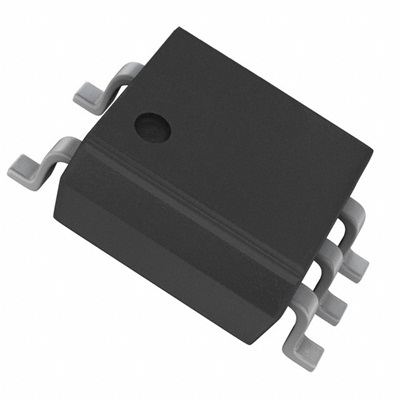

HCPL-M601

Logic Output Optoisolator 10MBd Open Collector,

Schottky Clamped 3750Vrms 1 Channel 5kV/µs CMTI 5-SO

Output Type Open Collector, Schottky Clamped

Current - Output / Channel 50mA

Data Rate 10MBd

Propagation Delay tpLH / tpHL (Max) 75ns, 75ns

Rise / Fall Time (Typ) 24ns, 10ns

Voltage - Forward (Vf) (Typ) 1.5V

Current - DC Forward (If) (Max) 20mA

Voltage - Supply 4.5 V ~ 5.5 V

Operating Temperature -40°C ~ 85°C

Mounting Type Surface Mount

Package / Case 6-SOIC (0.173", 4.40mm Width) 5 Leads

​
