HLK-PM01

Giá: 65.000₫ Còn hàng

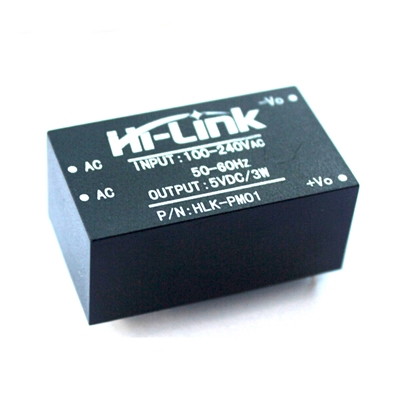

HLK-PM01 AC-DC 220V to 5V Step-Down Power Supply Module Intelligent Household

HLK-PM01 AC-DC 220V to 5V Step-Down Power Supply Module Intelligent Household
  All voltage input (AC: 90 ~ 264V)
    Low ripple and low noise
    Output overload and short circuit protection
    High efficiency, high power density
    The product is designed to meet the requirements of EMC and Safety Test
    Low power consumption, environmental protection, no-load loss <0.1W
    Operation Temperature: -20—+60°C
    Store Temperature: -40—+80°C
    Relative humidity: 5—95%
    Rated input voltage:100-240VAc
    Maximum input current: <0.2A
    Input current surge: <10A
    maximum input voltage: 270VAc
    Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%
    Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%
    Long-term reliability: MTBF 100000h
    Load rated output voltage: +5±0.1
    Short-term maximum output current: 1000mA
    The maximum output current for a long time: 600mA

Ứng dụng sản phẩm
