HX-3S-FL25A-A

Giá: 60.000₫ Còn hàng

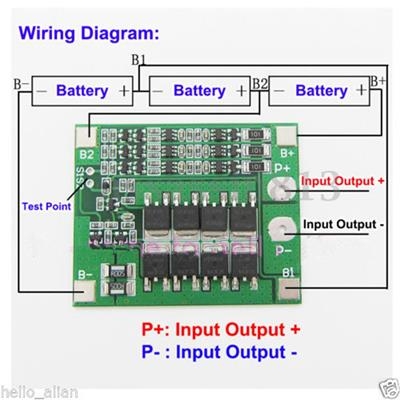

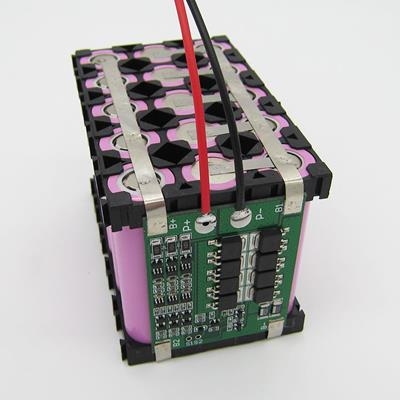

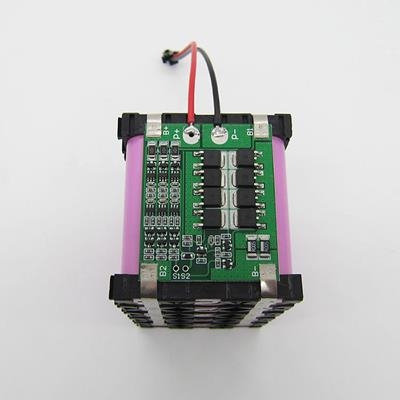

3S 11.1V 25A w/Balance 18650 Li-ion Lithium Battery BMS Protection PCB Board

3S 11.1V 25A w/Balance 18650 Li-ion Lithium Battery BMS Protection PCB Board
Model:HX-3S-FL25A-A

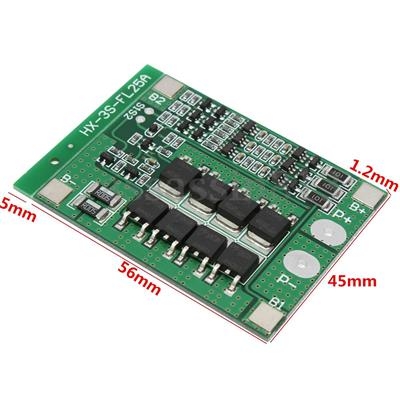

Size:about 56mm*45mm*1.2mm
Over voltage range:4.25-4.35v±0.05v
Over discharge voltage range:2.3-3.0v±0.05v
Maximum operating current:0-25A
Maximum transient current:34-40A
Quiescent current: less than 30uA
Internal resistance:less than 100mΩ
Working temperature:-40---+50℃
Storage condition:-40-- +80℃
Effective life:more than30000h
Short circuit protection: Yes, delayed self recovery
