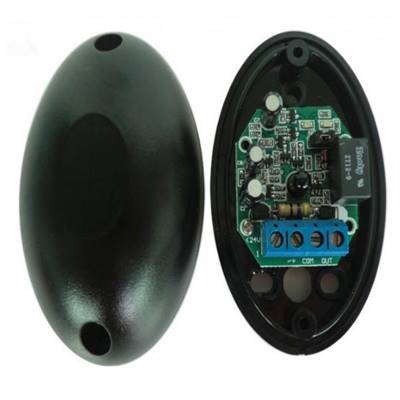

IR SENSOR ABO-20

Giá: 100.000₫ Còn hàng

1pair Single Beam Detector (ABO-20) Active Hemispherical Beam Infrared Detector Photoelectric Sensor alarm motion detector

1pair Single Beam Detector (ABO-20) Active Hemispherical Beam Infrared Detector Photoelectric Sensor alarm motion detector
1pair Single Beam Detector (ABO-20) Active Hemispherical Beam Infrared Detector Photoelectric Sensor alarm motion detector
Input voltage: 12V--24VDC/AC
To shoot distance 15 meters
Single beam infrared radiation
Technical parameters
Name: active infrared ray
Range: <15 m /25 M. When in heavy rain, heavy fog and other bad weather conditions, the distance will be reduced by%30
Infrared emission frequency: 1.92khz
Input power: 12V----24VDC/AC
Wavelength: 940nm
Input current: 15MA TX - 30MA RX
Shooting angle: <+ - 10%
Environment: to -20% 70%
Maximum load: Max 30V 1A
