IRF7303PBF

Giá: 25.000₫ Còn hàng

MOSFET 2N-CH 30V 4.9A 8-SOIC


MOSFET 2N-CH 30V 4.9A 8-SOIC
FET Type    2 N-Channel (Dual)
FET Feature    Standard
Drain to Source Voltage (Vdss)    30V
Current - Continuous Drain (Id) @ 25°C    4.9A
Rds On (Max) @ Id, Vgs    50 mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id    1V @ 250µA
Gate Charge (Qg) @ Vgs    25nC @ 10V
Input Capacitance (Ciss) @ Vds    520pF @ 25V
Power - Max    2W
Operating Temperature    -55°C ~ 150°C (TJ)
Mounting Type    Surface Mount

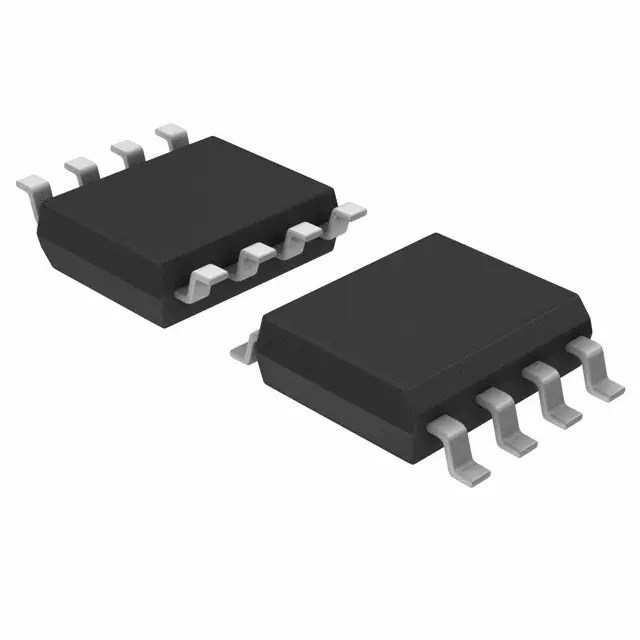

Package / Case    8-SOIC (0.154", 3.90mm Width)
