IRF7314T

Giá: 5.000₫ Còn hàng

MOSFET 2P-CH 20V 5.3A 8-SOIC

MOSFET 2P-CH 20V 5.3A 8-SOIC,

FETs - Arrays
Packaging ?     Tape & Reel
FET Type    2 P-Channel (Dual)
FET Feature    Logic Level Gate
Drain to Source Voltage (Vdss)    20V
Current - Continuous Drain (Id) @ 25°C    5.3A
Rds On (Max) @ Id, Vgs    58 mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id    700mV @ 250µA
Gate Charge (Qg) @ Vgs    29nC @ 4.5V
Input Capacitance (Ciss) @ Vds    780pF @ 15V
Power - Max    2W
Mounting Type    Surface Mount

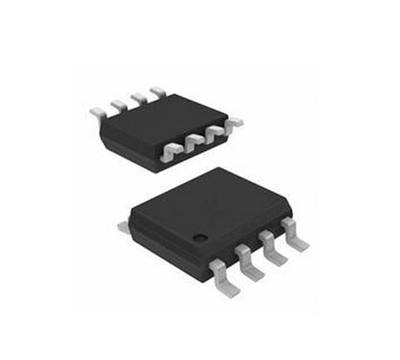

Package / 8-SOIC (0.154", 3.90mm Width)

  data sheet

Ứng dụng sản phẩm
