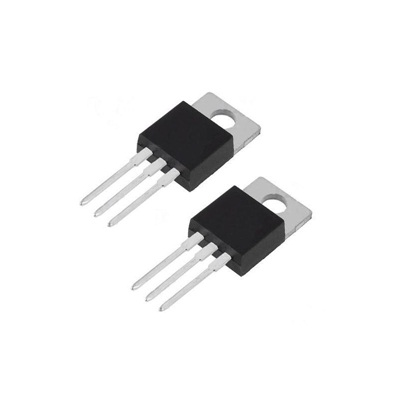

IRF9540N

MOSFET P-CH 100V 23A TO-220AB,

FETs - Single
Packaging      Tube
FET Type    MOSFET P-Channel, Metal Oxide
FET Feature    Standard
Drain to Source Voltage (Vdss)    100V
Current - Continuous Drain (Id) @ 25°C    23A (Tc)
Rds On (Max) @ Id, Vgs    117 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id    4V @ 250µA
Gate Charge (Qg) @ Vgs    97nC @ 10V
Input Capacitance (Ciss) @ Vds    1300pF @ 25V
Power - Max    140W
Mounting Type    Through Hole
Package / TO-220-3
