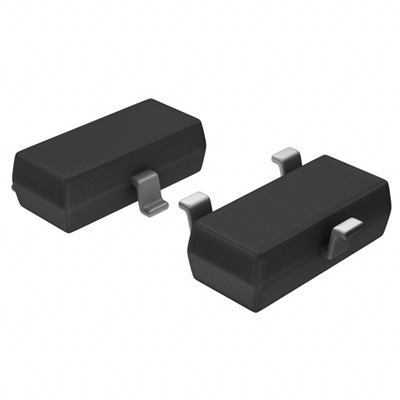

IRLML9303TRPBF
Giá: 2.500₫ Còn hàng
P-Channel 30V 2.3A (Ta) 1.25W (Ta) Surface Mount Micro3™/SOT-23
P-Channel 30V 2.3A (Ta) 1.25W (Ta) Surface Mount Micro3™/SOT-23
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 165 mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id 2.4V @ 10µA
Gate Charge (Qg) (Max) @ Vgs 2nC @ 4.5V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 160pF @ 25V
FET Feature -
Power Dissipation (Max) 1.25W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package Micro3™/SOT-23
