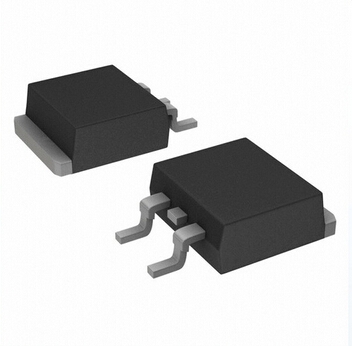

IRLR2908TRLPBF
Giá: 8.500₫ Còn hàng
MOSFET N-CH 80V 30A DPAK
MOSFET N-CH 80V 30A DPAK,
FET Type MOSFET N-Channel, Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 80V
Current - Continuous Drain (Id) @ 25°C 30A (Tc)
Rds On (Max) @ Id, Vgs 28 mOhm @ 23A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) @ Vgs 33nC @ 4.5V
Input Capacitance (Ciss) @ Vds 1890pF @ 25V
Power - Max 120W
Mounting Type Surface Mount
Package / TO-252-3
