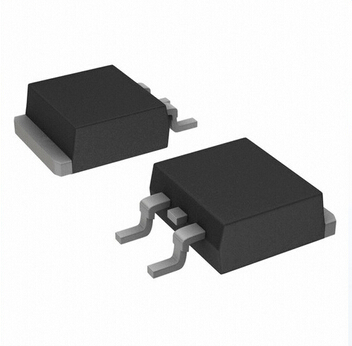

IRLR7843TRPBF
Giá: 10.500₫ Còn hàng
MOSFET N-CH 30V 161A DPAK
MOSFET N-CH 30V 161A DPAK,
FET Type MOSFET N-Channel, Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) 25°C 161A (Tc)
Rds On (Max) Id, Vgs 3.3 mOhm @ 15A, 10V
Vgs(th) (Max) Id 2.3V 250µA
Gate Charge (Qg) Vgs 50nC 4.5V
Input Capacitance (Ciss) Vds 4380pF 15V
Power - Max 140W
Mounting Type Surface Mount
Package / TO-252-3, DPak
