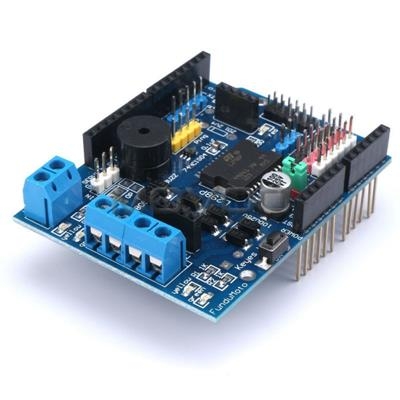

Mạch Điều Khiển Động Cơ DC L298P Cho Arduino R3

L298P Motor Shield Dual CH High-Power H-bridge Driver,Bluetooth Interface,PWM Speed Controller Compatible with Arduino UNO
    Logical input voltage VD: DC 5V
    Drive input voltage: VIN 6.5 ~ 12V, PWR IN 4.8 ~ 24V
    Logical working current ss: ≤ 36mA
    Drive working current Io: ≤ 2A
    Maximum power dissipation: 25W (T= 75°c)
    Control signal input electric level:
    High: 2.3V≤ Vin ≤ 5V
    Low: -0.3 V ≤ Vin ≤ 15V
    Operating temperature: -25°c ~ +130°c
Features:

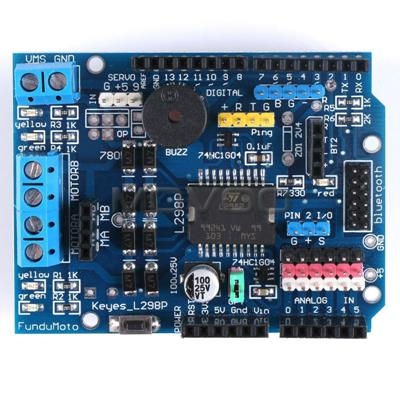

    1. There is L298P motor driver chip on the board so that you can use digit IO interface(D .D10. D11. D12) without cumbersome wiring connection
    2. Onboard buzzer (D4), you can set the astern alarm ringtone
    3. Convenient motor interface can be two routes motor output
    4. Two-way bluetooth interface requires no wiring and you can plug directly
    5. It has seven digital interface that are not occupied (including D 2 , D 3 , D 5 , D 6 , D 7 , D 9 , D )
    6. It has six analog interfaces(A0, A1, A2, A3, A4, A5)
    7. It has indicator for forward and backward changing direction
