L6384D013TR

Giá: 1₫ Còn hàng

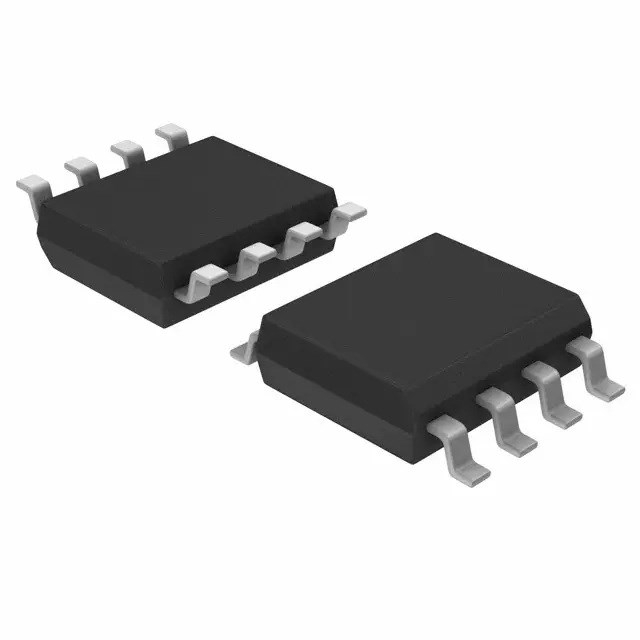

Half-Bridge Gate Driver IC Inverting 8-SO


Half-Bridge Gate Driver IC Inverting 8-SO
Gate Type    IGBT, N-Channel MOSFET
Voltage - Supply    14.6 V ~ 16.6 V
Logic Voltage - VIL, VIH    1.5V, 3.6V
Current - Peak Output (Source, Sink)    400mA, 650mA
Input Type    Inverting
High Side Voltage - Max (Bootstrap)    600V
Rise / Fall Time (Typ)    50ns, 30ns
Operating Temperature    -45°C ~ 125°C (TJ)
Mounting Type    Surface Mount
Package / Case    8-SOIC (0.154", 3.90mm Width)
