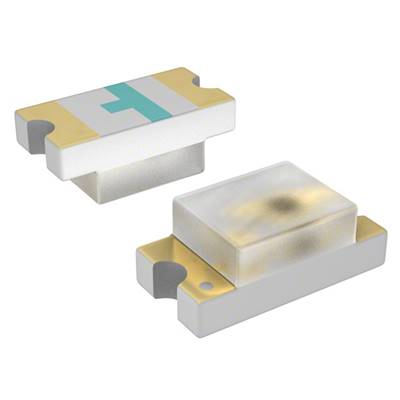

LED 0805 Red

Giá: 400₫ Còn hàng

Red 645nm LED Indication - Discrete 1.8V 0805 (2012 Metric)

Red 645nm LED Indication - Discrete 1.8V 0805 (2012 Metric)
Color                                       Red
Wavelength - Dominant               645nm
Wavelength - Peak                       645nm
Millicandela Rating                      41mcd
Voltage - Forward (Vf) (Typ)       1.8V
Current - Test                               20mA
Viewing Angle    -
Lens Type                               Clear

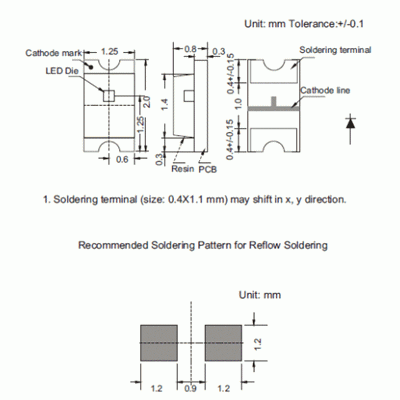

Lens Style/Size    Rectangle with Flat Top, 1.4mm x 1.25mm
Package / Case                       0805 (2012 Metric)
Size / Dimension                       2.00mm L x 1.25mm W
Height                                       0.80mm

Ứng dụng sản phẩm
