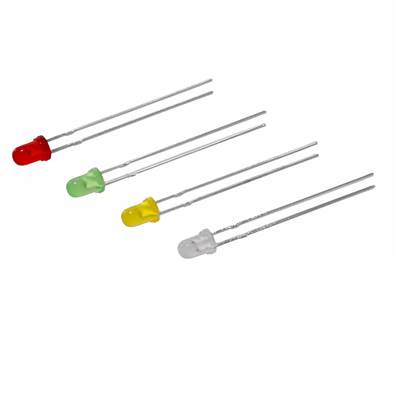

LED 3mm Green

Giá: 200₫ Còn hàng

Green 568nm LED Indication - Discrete 2.2V Radial

Green 568nm LED Indication - Discrete 2.2V Radial
Color     Red
Lens Color     Red
Lens Transparency     Diffused
Millicandela Rating     25mcd

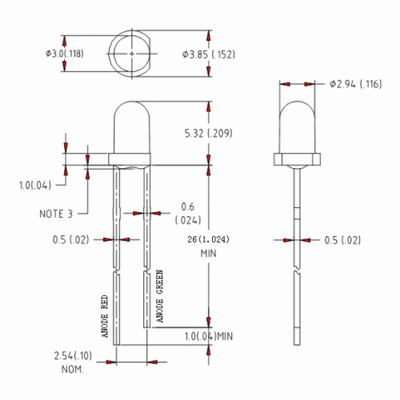

Lens Style/Size     Round with Domed Top, 3mm (T-1), 2.85mm
Voltage - Forward (Vf) (Typ)     2.2V
Current - Test     20mA
Viewing Angle     40°
Mounting Type     Through Hole
Wavelength - Dominant     568nm
Wavelength - Peak     565nm
Package / Radial
Size / 0.85mm L x 0.65mm W
Height (Max)     5.90mm

Ứng dụng sản phẩm
Tags: LED LED 3MM
