LM2596SX-12

Giá: 12.500₫ Còn hàng

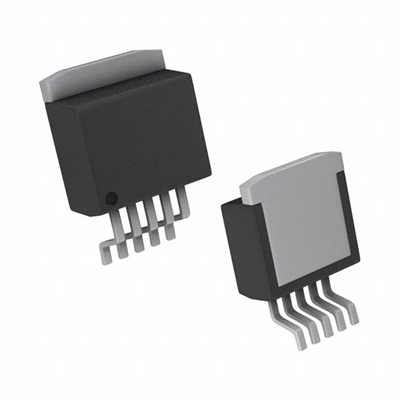

Buck Switching Regulator IC Positive Fixed 12V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA

Buck Switching Regulator IC Positive Fixed 12V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Output Type    Fixed
Number of Outputs    1
Voltage - Input (Min)    4.5V
Voltage - Input (Max)    40V
Voltage - Output (Min/Fixed)    12V
Voltage - Output (Max)    -
Current - Output    3A
Frequency - Switching    150kHz
Synchronous Rectifier    No
Operating Temperature    -40°C ~ 125°C (TJ)
Mounting Type    Surface Mount
Package / Case    TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package    DDPAK/TO-263-5

  data sheet

Ứng dụng sản phẩm
