LTC3780 Automatic Buck Boost DC/DC

Giá: 250.000₫ Còn hàng

LTC3780 DC 5V-32V To 1V-30V 10A Adjustable Automatic Step Down Regulator Module

LTC3780 DC 5V-32V To 1V-30V 10A Adjustable Automatic Step Down Regulator Module
Model: LTC3780
Input voltage: DC 5V~32V (Recommended to use voltage over 10V)
Output voltage: DC 1V~30V continuously adjustable (default 12V shipment)
Output current: 10 A (MAX) ,long term within 7 A (default 4A)
Output power: 80 W, Peak 130 W(more than 80W please strengthen heat dissipation)
Output ripple: 50 mV (12V turn to 12V, 5A measured)
Short circuit protection:Yes
Input reverse connection protection: No
Output prevent reverse connection protection: No
Operating temperature range: -45℃ ~ +85 ℃

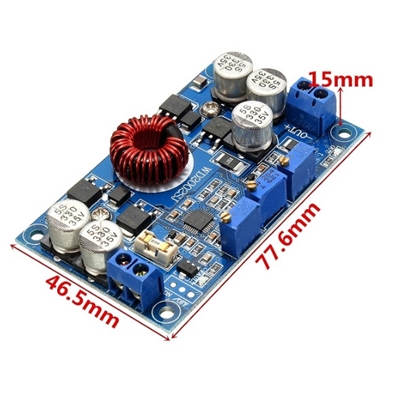

Size(L*W*H): 77.6 x 46.5 x 15 mm
