LVR005NS

Giá: 1.800₫ Còn hàng

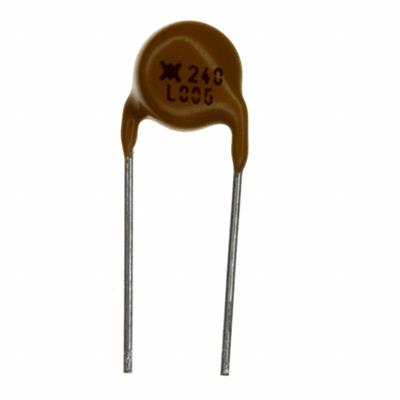

PTC Resettable Fuse 240V 50mA Ih Through Hole Radial, Disc

PTC Resettable Fuse 240V 50mA Ih Through Hole Radial, Disc
Voltage - Max     240V
Current - Max     1A
Current - Hold (Ih) (Max)     50mA
Current - Trip (It)     120mA
R Min/Max     18.50 ~ 31.00 Ohm
Time to Trip     10s
Mounting Type     Through Hole
Package / Case     Radial, Disc

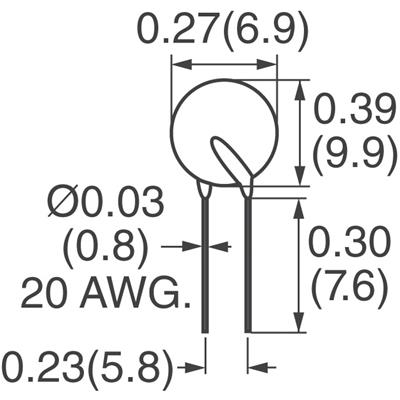

Size / Dimension     0.272" Dia x 0.181" W (6.90mm x 4.60mm)

data shhet
