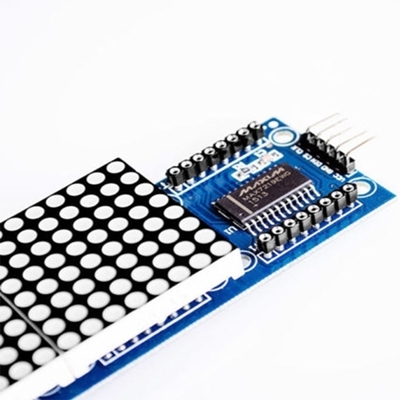

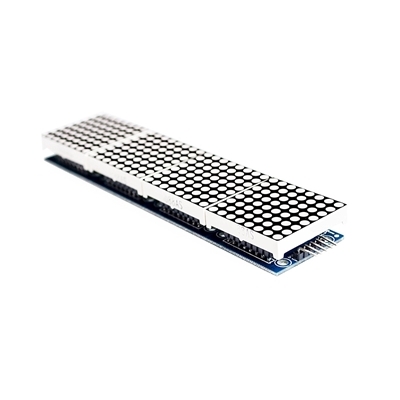

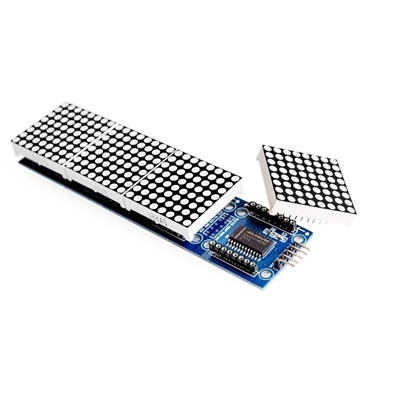

MAX7219 dot matrix module LED display 8*32 Red

Giá: 90.000₫ Còn hàng

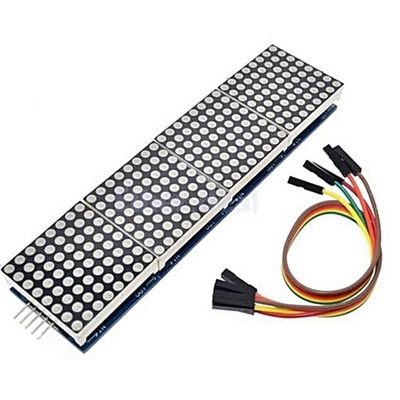

MAX7219 Dot Led Matrix Module 4 In 1 Display with 5P Line Module For Arduino Micro-controller Red color

MAX7219 Dot Led Matrix Module 4 In 1 Display with 5P Line Module For Arduino Micro-controller
Pin Connection
Dot LED Module to the Arduino Red color
Vcc      –     5V
GND   –    GND
DIN    –    Pin 12
CS       –    Pin 10
CLK    –    Pin 11

Requires only 3 communication wires of MCU
Pre-cascaded MAX7219 Dot Matrix LED Module.
The overall size of the display is very compact
The PCB features M3 holes for mounting.
Module with input and output interfaces
Support for cascading multiple modules
Quite large display
