MBI5026GF

Giá: 15.000₫ Còn hàng

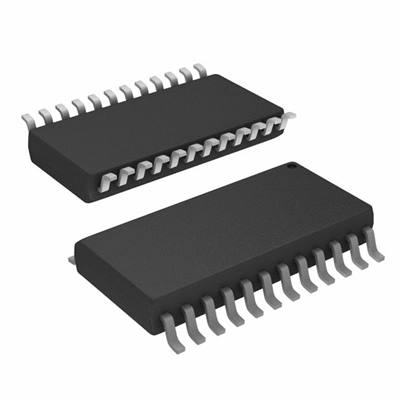

IC LED DRIVER LINEAR SOP24-300-1.00

IC LED DRIVER LINEAR SOP24-300-1.00,

 16 constant-current output channels
Constant output current invariant to load voltage change
Excellent output current accuracy:
between channels: <±3% (max.), and
between ICs: <±6% (max.)
Output current adjusted through an external resistor
Constant output current range: 5-90 mA
Fast response of output current, OE (min.): 200 ns
25MHz clock frequency
Schmitt trigger input
5V supply voltage    SOP24-300-1.00

   data sheet

Ứng dụng sản phẩm
