MINI L293D Arduino expansion

Giá: 35.000₫ Còn hàng

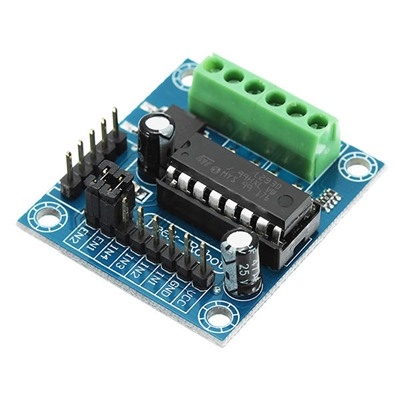

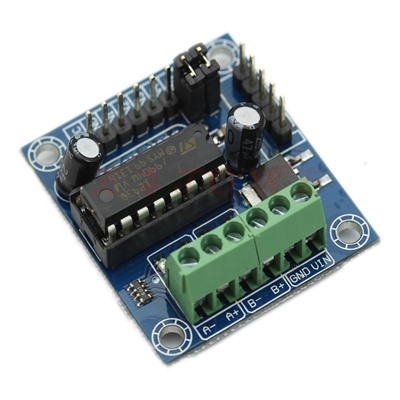

MINI L293D Arduino expansion Mini L293D motor drive motor drive module

MINI L293D Arduino expansion Mini L293D motor drive motor drive module
The input voltage DC4.5-25V,
Ability to 600mA output current per channel
line output 1.2A PEAK (not repeat) on each channel
allows establishments
Protection overheating
Input Voltage " 0 "up to 1.5 V reasonable (IMMEDIATELY CAO)
Diodes internal clamping

description:

this device is a four-channel driver integrated high voltage, monolithic designed to accept standard DTL
or TTL logic levels and control inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistor.
To simplify use as two bridges, each pair of input channel is equipped with a trigger. A separate input supply is provided to the logic,
allowing operation at lower voltage and clamp diodes inside included. This device is suitable for use in applications that switch
at frequencies up to 5 kHz.

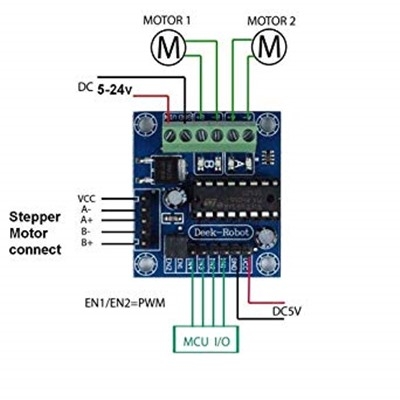

Motor wiring 9-24V:
