MINISMDC020F-2

Giá: 2.000₫ Còn hàng

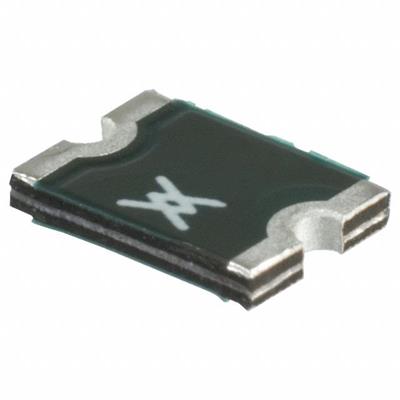

PTC Resettable Fuse 30V 200mA Ih Surface Mount 1812 (4532 Metric), Concave

PTC Resettable Fuse 30V 200mA Ih Surface Mount 1812 (4532 Metric), Concave
Voltage - Max     30V
Current - Max     10A
Current - Hold (Ih) (Max)     200mA
Current - Trip (It)     400mA
R Min/Max     0.600 ~ 3.300 Ohm
Time to Trip     0.02s
Mounting Type     Surface Mount
Package / Case     1812 (4532 Metric), Concave

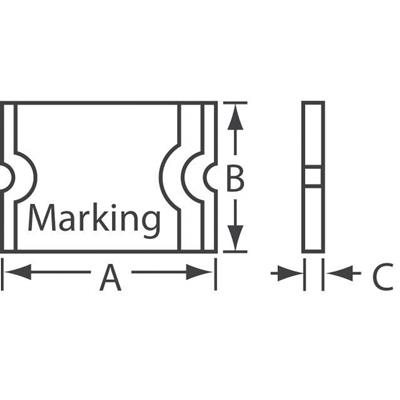

Size / Dimension     0.179" L x 0.128" W (4.55mm x 3.24mm)

data sheet

Ứng dụng sản phẩm
