MINISMDC075F-2

Giá: 1.500₫ Còn hàng

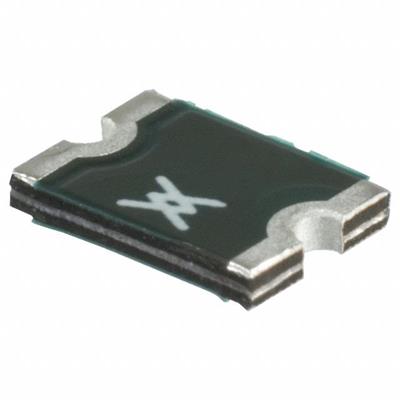

PTC Resettable Fuse 13.2V 750mA Ih Surface Mount 1812 (4532 Metric), Concave

PTC Resettable Fuse 13.2V 750mA Ih Surface Mount 1812 (4532 Metric), Concave
Voltage - Max     13.2V
Current - Max     100A
Current - Hold (Ih) (Max)     750mA
Current - Trip (It)     1.5A
R Min/Max     0.110 ~ 0.450 Ohm
Time to Trip     0.2s
Mounting Type     Surface Mount
Package / Case     1812 (4532 Metric), Concave
Size / Dimension     0.179" L x 0.128" W (4.55mm x 3.24mm)

data sheet

Ứng dụng sản phẩm
