MINISMDC150F/12-2

Giá: 2.000₫ Còn hàng

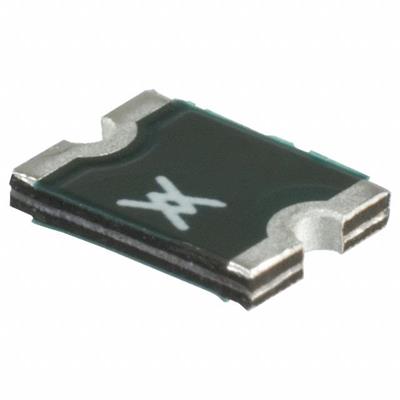

PTC Resettable Fuse 12V 1.5A Ih Surface Mount 1812 (4532 Metric), Concave

PTC Resettable Fuse 12V 1.5A Ih Surface Mount 1812 (4532 Metric), Concave
Voltage - Max     12V
Current - Max     100A
Current - Hold (Ih) (Max)     1.5A
Current - Trip (It)     2.8A
R Min/Max     0.040 ~ 0.110 Ohm
Time to Trip     0.5s
Mounting Type     Surface Mount
Package / Case     1812 (4532 Metric), Concave

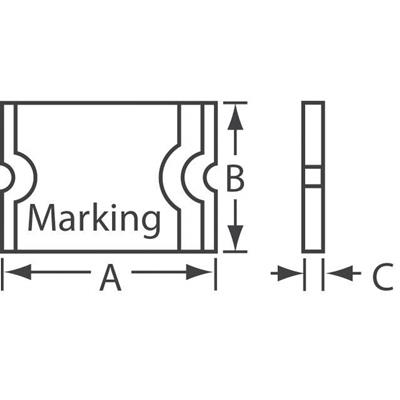

Size / Dimension     0.181" L x 0.128" W (4.60mm x 3.24mm)

data sheet

Ứng dụng sản phẩm
