Mạch Báo Dung lượng Pin 4 Mức 12V

22.000₫ Giá cũ:

Mạch Báo Dung lượng Pin 4 Mức 12V, Lithium Battery Capacity Indicator Module 4 Level Electric Vehicle Battery Power Tester Li-po Li-ion

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Báo Dung lượng Pin 4 Mức 12V
Điện Áp Sử Dụng	3-12Vdc
Hiển Thị	LED Màu Xanh Dương
Mức Hiển Thị	4 Mức Và Khung Viền
Quy Cách
Kich Thước Mạch	45 x 20 mm

Lithium Battery Capacity Indicator Module 4 Level Electric Vehicle Battery Power Tester Li-po Li-ion

Power Input voltage: 3V ~ 12Vdc

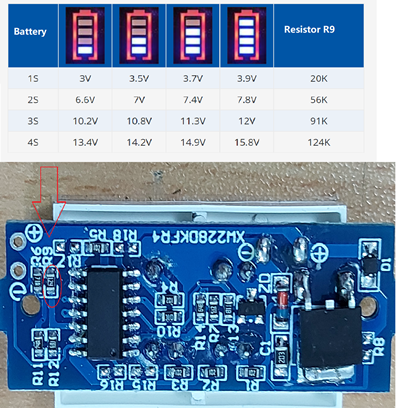

Battery Power Tester Li-po Li-ion :Change value resistor R9
Battery type electricity quantity display
Wide application fields:lithium battery
Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity

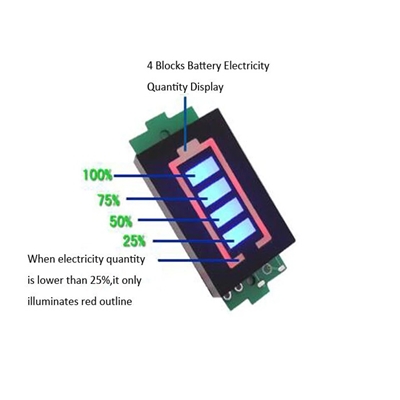

Digital Color:outline red,display block blue (when battery electricity quantity is full,it will be all on)

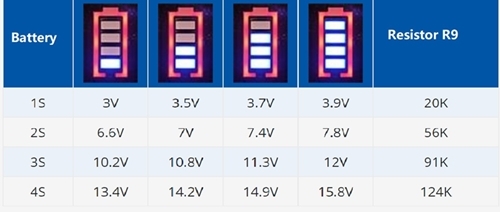

Display Electricity Quantity Parameter:
- When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity)
- When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
- When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
- When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
- When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery
