Module C6B4 16.8V 30A

Giá: 98.000₫ Còn hàng

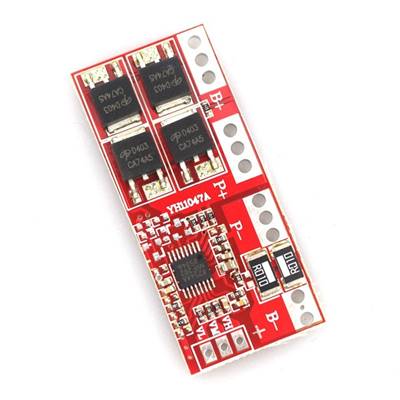

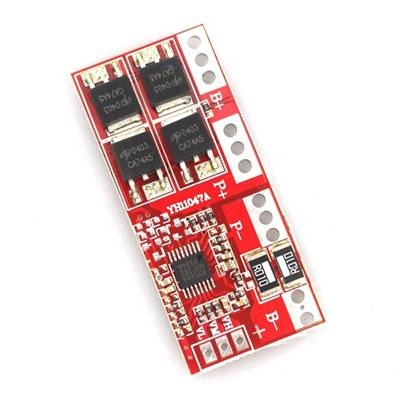

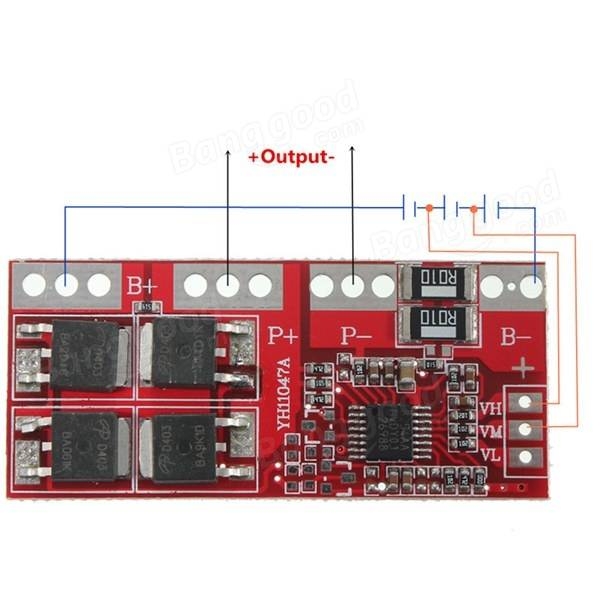

4 series of lithium battery protection board does not need to activate the automatic recovery 16.8V 30A

4 series of lithium battery protection board does not need to activate the automatic recovery 16.8V 30A  high current 14.8V
Module name: 4 series lithium battery protection board
Module nature: polymer lithium battery protection board
Over charge detection voltage: 4.25 + 0.025V
Over charge release voltage: 4.15 + 0.05V
Over discharge detection voltage: 2.50 + 0.08V
Over discharge voltage: 3 + 0.1V
Over current: 20-30A
Working current: 15A (natural heat 10A, plus heat sink 15A, maximum instantaneous current 30A)
