Module LM2587 Adjustable Boost Step Up

Giá: 60.000₫ Còn hàng

 DC-DC Boost converter module T64  1.5V-3V3  Out 3V3

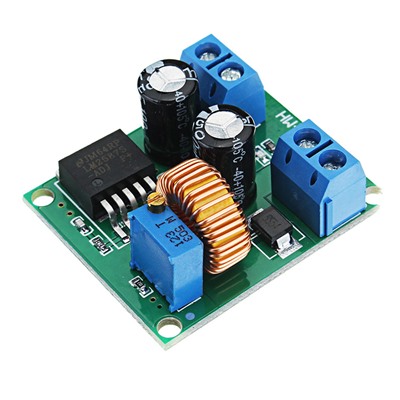

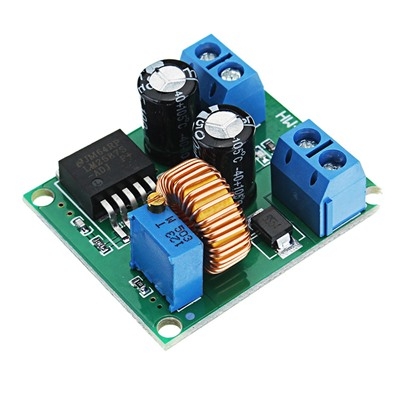

3V/5V/12V to 19V/24V/30V/36V DC Adjustable Boost Step Up Module LM2587 Power Supply Board
Input voltage range: 3.5V~30V (Ensure that set output voltage is higher than input voltage)
Output voltage range: 4.0~30V
Input current: Max 5A
Efficiency: 94% (MAX)
Continuously working current: 3A (Good ventilation conditions, the output voltage and input voltage ratio cannot be greater than 3)
Dimensions: 37 x 32 x 15mm (L x W x H)
Connection mode: Terminals are not welded, IN is input, and OUT is output
Note: The smaller the differential voltage between the input and output voltages, the greater the carrying capacity and the higher the efficiency
