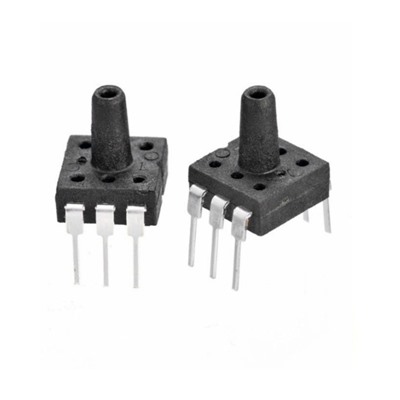

MPS20N0040D Pressure Sensor

Giá: 15.000₫ Còn hàng

MPS20N0040D-D Sphygmomanometer Pressure Sensor Meter 0-40kPa DIP-6

MPS20N0040D-D Sphygmomanometer Pressure Sensor Meter 0-40kPa DIP-6
 Measuring medium: air
- Measuring range: 0-40kPa
- Operating temperature range: -40 ° ~ + 125 °
- Storage Temperature: -40 ° ~ + 150 °
- Humidity: (50% ± 10%) RH
- Ambient temperature: (25 ± 1) °
- Medium temperature: (25 ± 1) °
- Output impedance: 4kΩ ~ 6kΩ
- Zero output: -15mV~+15mV
- Hysteresis: +-0.7%F.S.
- Power supply: ≤10V DC or ≤2.0mA DC
- Insulation resistance: 100MΩ, 100VDC
